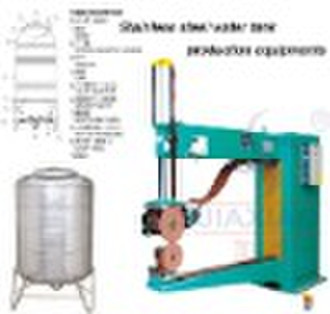

stainless steel water tank production equipments
Yike Yang
Contact person
Basic Information
stainless steel water tank production equipments- seam welding machine technical date Model No. FZ-100 Primary voltage V380 Duty cycle %50 Rated capacity KVA100 (DC) The extend length of electrode arm mm1700 Max. distance of electrode mm350 The range of welding speed m/min0.6-1.5 Max. pressure of electrode KN6.1 Ability of welding Mild steel mm1.5+1.5 Stainless steel mm1.2+1.2 The pressure of compressed air MPa0.6Electric motor power supply 220V/ SinglephaseThe power of electric motor W200Time adjust of welding CYC1 99Time adjust of cooling CYC1 99Allowed volatage undulate %+10-15The range of heat adjust %35-99Exterior size Length*width*height mm1800×580×1900 The weight of welderKg750KG
Delivery terms and packaging
Port: Ningbo
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
